SM-X-1T3/E3=
In Stock
Cisco SM-X-1T3/E3= Product Highlights
- ● Single port T3/E3
- ● High-speed connectivity
- ● Seamless integration
- ● Reliable performance
- ● Cost-effective solution
Product Features Comparison
| Feature | Cisco SM-X-1T3/E3= | Cisco SM-X-4T1/E1= | Cisco NIM-1T3/E3 | Cisco NIM-4T1/E1 | Cisco VWIC3-1MFT-T1/E1 | Cisco VWIC3-4MFT-T1/E1 | Cisco VWIC2-1MFT-T1/E1 | Cisco NIM-8A/S |
|---|---|---|---|---|---|---|---|---|
| Ports | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 8 |
| Connector Type | BNC | BNC | BNC | BNC | RJ-48 | RJ-48 | RJ-48 | RS232 |
| Speed Support | T3/E3 | T1/E1 | T3/E3 | T1/E1 | T1/E1 | T1/E1 | T1/E1 | Low-speed |
| Integrated CSU/DSU | Yes | No | Yes | No | Yes | Yes | Yes | No |
| Network Module Compatibility | ISR 4000 | ISR 4000 | ISR 4000 | ISR 4000 | ISR G2 | ISR G2 | ISR G2 | ISR 4000 |
| Supported Protocols | HDLC, PPP | HDLC, PPP | HDLC, PPP | HDLC, PPP | HDLC, PPP, FR | HDLC, PPP, FR | HDLC, PPP, FR | HDLC, PPP |
Cisco SM-X-1T3/E3= Product Application Scenarios
- ● Enterprise WAN connections
- ● Data center integrations
- ● High-speed branch connectivity
Optional Add-ons
| Model | Description |
|---|---|
| CAB-E3-RF | RF Coaxial Cable for E3 |
| CAB-DS3-RF | RF Coaxial Cable for T3 |
| E3-FEEDBACK | Feedback Suppressor Module |
Description

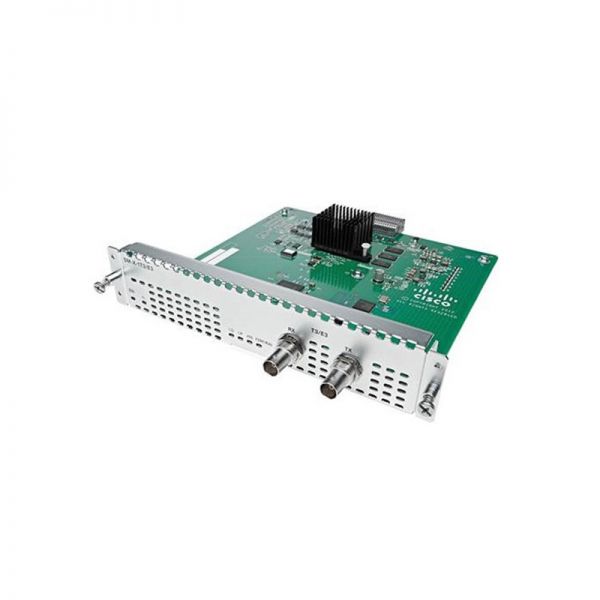

SM-X-1T3/E3= Overview
Cisco’s SM-X-1T3/E3= is a reliable and efficient T3/E3 service module designed to enhance network performance and flexibility. Ideal for engineers and procurement teams, this module ensures high-speed connectivity in various demanding environments, such as data centers, enterprise networks, and more.
SM-X-1T3/E3= Specification
SM-X-1T3/E3= Specifications |
|
| Product Type | Service Module |
| Port | 1 x T3/E3 |
| Data Rate | 44.736 Mbps (T3), 34.368 Mbps (E3) |
| Network Protocols | SONET/SDH, PPP, HDLC |
| Interface | BNC Coaxial Connectors |
| Form Factor | Plug-in module |
| Compatible Platforms | Cisco 4000 Series Integrated Services Routers |
| Redundancy | Supports Multi-Link PPP (MLPPP) |
| Mounting | Internal |
| Temperature Range | Operating: 32 to 104°F (0 to 40°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Power Consumption | 5.5W maximum |
| Humidity Range | 10 to 85% non-condensing |
| LED Indicators | Link, Activity |
| EMC Certifications | GR-1089, EN55022, EN55024 |
| Safety Certifications | UL 60950, CSA 22.2 No. 60950 |
| Dimensions | 5.3 x 1.1 x 7.1 inches (L x W x H) |
| Mean Time Between Failure (MTBF) | 250,000 hours |
| Warranty | Limited Lifetime Warranty |
