ISM-SRE-300-K9
In Stock
Quick Specs

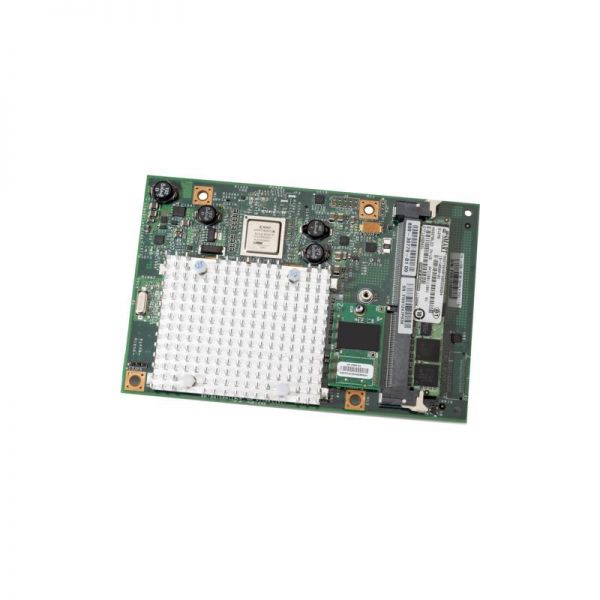

Figure 1 shows the appearance of ISM-SRE-300-K9.
Table 1 shows the quick specs of ISM-SRE-300-K9.
| Part Number | ISM-SRE-300-K9 |
| Form factor | ISM |
| CPU | Genuine Intel Processor, 1.06 GHz |
| DRAM | 512 MB |
| Compact Flash memory | 4-GB internal USB flash-memory module |
| Internal network interfaces | Gigabit Ethernet connectivity to router backplane |
| External network interfaces | None |
| Router platforms | Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers |
Router Platforms
Table 2 shows the router platforms which support ISM-SRE-300-K9.
| Model | Description |
| CISCO1941/K9 | Cisco 1941 Router w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base |
| CISCO2901/K9 | Cisco 2901 router w/2 GE,4 EHWIC,2 DSP,256MB CF,512MB DRAM,IP Base |
| CISCO2911/K9 | Cisco 2921 Router w/3 GE,4 EHWIC,3 DSP,1 SM,256MB CF,512MB DRAM,IPB |
| CISCO2921/K9 | Cisco 2911 router w/3 GE,4 EHWIC,2 DSP,1 SM,256MB CF,512MB DRAM,IPB |
| CISCO2951/K9 | Cisco 2951 Router w/3 GE,4 EHWIC,3 DSP,2 SM,256MB CF,512MB DRAM,IPB |
| CISCO3925/K9 | Cisco 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB) |
| CISCO3945/K9 | Cisco 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB) |
Compare to Similar Item
Table 3 shows the comparison between ISM-SRE-300-K9 and SM-SRE-700-K9.
| Product part number | ISM-SRE-300-K9 | SM-SRE-700-K9 |
| Form factor | ISM | SM |
| CPU | Genuine Intel Processor, 1.06 GHz | Intel Core2 Solo, 1.86 GHz |
| DRAM | 512 MB | 4 GB |
| Compact Flash memory | 4-GB internal USB flash-memory module | 2-GB internal USB flash-memory module |
| Hard disk | None | One 500-GB SATA
5400 rpm (SRE 700) |
| Hot-swappable hard disk drive (HDD) | None | None |
Description
ISM-SRE-300-K9 Overview
The Cisco Services-Ready Engine (SRE) modules are router blades for the Cisco Integrated Services Routers Generation 2 (ISR G2) that provide the capability to host Cisco, third-party, and custom applications. ISM-SRE-300-K9 is supported by Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers.
ISM-SRE-300-K9 Specification
ISM-SRE-300-K9 Specifications |
|
| Form factor | ISM |
| CPU | Genuine Intel Processor, 1.06 GHz |
| DRAM | 512 MB |
| Compact Flash memory | 4-GB internal USB flash-memory module |
| Hard disk | None |
| Hot-swappable hard disk drive (HDD) | None |
| RAID support | None |
| Internal network interfaces | Gigabit Ethernet connectivity to router backplane |
| External network interfaces | None |
| Router platforms | Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers |
| Cisco IOS Software (on router) | Release 15.0(1)M |
| Embedded hardware-based cryptography acceleration | No |
|
Supported Applications |
|
| Applications | • Cisco Unity Express
• Cisco Application Extension Platform (AXP) • Cisco Wireless LAN Controller (WLC) |
|
Power Specifications |
|
| Power consumption (maximum) | 20W |
|
Physical Specifications |
|
| Dimensions (H x W x D) | 0.85 x 4 x 6.1 in.
(2.2 x 10.2 x 15.5 cm) |
| Shipping dimensions (H x W x D with packaging) | 9.45 x 7.18 x 2.38 in.
(24 x 18.4 x 6.05 cm) |
| Maximum weight | 0.5 lb (0.206 kg) |
|
Environmental Specifications |
|
|
Operating Conditions |
|
| Operating temperature | Per operating requirements of deployable platform |
| Humidity | Per operating requirements of deployable platform |
| Altitude (operating) | Per operating requirements of deployable platform |
| Transportation and Storage Conditions | |
| Temperature | -13 to 158°F (-25 to +70°C) |
| Relative humidity | 5 to 95% |
| Altitude | 15,000 ft (4,600m) |
|
Regulatory Compliance |
|
| Safety | Per safety requirements of deployable platform |
| EMC | AS/NZS 3548: 1995 incorporating Amendments 1 and 2; Class A (Australia)
CISPR 22: 1997; Class A (International) Code of Federal Regulations, Title 47, Part 15, Sub-part B: 2000; Class A (United States - FCC) CNS-13438 (Taiwan) EN55022: 1998, EN61000-3-2: 1995, EN61000-3-3: 1995, EN55024: 1998, EN50082-1: 1997 (European Union & Eastern Block) EN300386: 2000; Class A (European Union - licensed telecommunications network equipment operators) ICES-003 Issue 3, 1998 (Canada) VCCI V-3/00.04 (Japan) |
