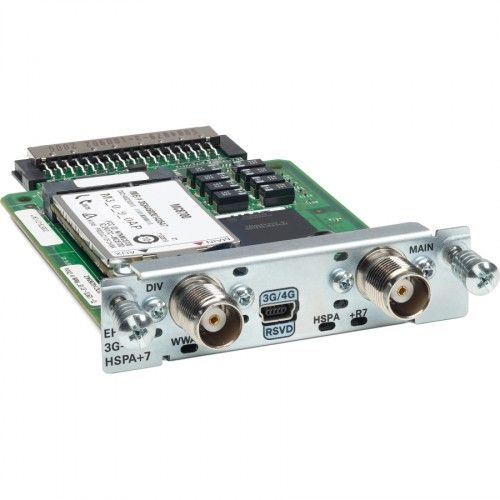

EHWIC-3G-HSPA+7

Model: Cisco EHWIC-3G-HSPA+7
In Stock
Login To See Price
Categories: ,

Quick Spec

Brand Cisco
Model EHWIC-3G-HSPA+7
Network Type 3G
Frequency Bands 850, 900, 1900, 2100 MHz
Wireless Standard HSPA+

Product Features

  • ● ● High-speed 3G HSPA+ connectivity
  • ● ● Compatible with GSM 850, 900, 1900, and 2100 MHz bands
  • ● ● Supports secure and reliable wireless communication
  • ● ● Seamless integration with Cisco routers
  • ● ● Compact design for easy deployment

Product Applications

  • ● ● Remote office connectivity for continuous internet access
  • ● ● Mobile workforce requiring reliable and fast data access
  • ● ● Disaster recovery sites where wired connections are impractical

Supported Options

Antenna Cisco Multi-band Swivel-mount Dipole Antenna
Cable Cisco 10-ft Crossover Cable
Power Supply Cisco 12V Power Adaptor

Compare to Similar Items

Model Differences
Cisco EHWIC-3G-HSPA+8 Supports additional frequency bands
Cisco EHWIC-4G-LTE-G Provides 4G LTE connectivity
Cisco PVDM3-16 Used for digital signal processing with different functionalities

Description

EHWIC-3G-HSPA+7 Overview

The Cisco EHWIC-3G-HSPA+7 is a versatile 3G network wireless module designed to provide reliable connectivity on GSM networks. It supports a wide range of frequencies, including 850, 900, 1900, and 2100 MHz, making it a flexible solution for various deployments requiring robust mobile internet access. Perfect for integrating wireless services into Cisco routers, it ensures seamless communication and extended reach.

EHWIC-3G-HSPA+7 Specification

EHWIC-3G-HSPA+7 Specifications
Brand Cisco
Model EHWIC-3G-HSPA+7
Network Type 3G
Category Wireless Module
Frequency Bands 850, 900, 1900, and 2100 MHz
Technology HSPA+
GSM Support Yes
Form Factor Module
Max Download Speed 21 Mbps
Max Upload Speed 5.76 Mbps
Interface EHWIC
Compatibility Cisco Routers
SIM Card Type Mico-SIM
Power Consumption 5W
Operating Temperature 0 to 40��C
Storage Temperature -20 to 70��C
Humidity 10% to 85% (non-condensing)
Dimensions 130 x 100 x 20 mm
LED Indicators Power, Link, Activity
Certifications CE, RoHS
Warranty 1 Year
