C9500-NM-2Q=
Quick Specs

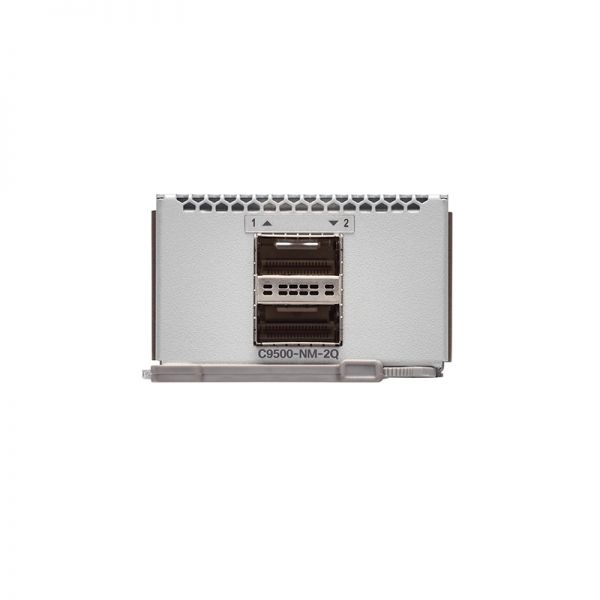

Figure 1 shows the appearance of C9500-NM-2Q=.
Table 1 shows the Quick Specs.
Product Code | C9500-NM-2Q= |
Description | Cisco Catalyst 9500 2 x 40GE Network Module Spare |
Product Details
Figure 2 shows the front panel of C9500-NM-2Q=.
Note:
① | LEDs |
② | 40G QSFP module slots |
Description
C9500-NM-2Q= Overview
Cisco Catalyst 9500 2 x 40GE Network Module Spare. This module has two 40G QSFP module slots. Any combination of standard QSFP modules are supported.
C9500-NM-2Q= Specification
Cisco Catalyst 9500 2 x 40GE Network Module Spare
