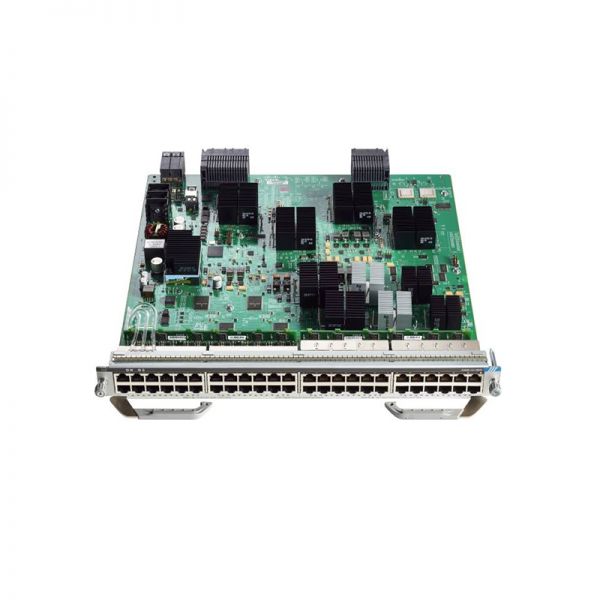

C9400-LC-48UX

Model: C9400-LC-48UX - Catalyst 9400 Module
In Stock
Login To See Price
Categories: ,

Quick Spec

Table 1 shows the quick spec of the C9400-LC-48UX.

Product Code C9400-LC-48UX
Manufacturer Cisco
Product Type Line Card
Total Ports 48
UPOE Ports 48

Product Features

  • Provides 48 UPOE ports with 24 mGig ports and 24 RJ-45 ports.
  • Offers advanced security and network management tools.
  • Scalable with modular design.
  • Efficient power management.
  • Highly resilient with field-replaceable components.

Product Applications

  • Enterprise network infrastructure
  • Large campus deployments
  • Data center networks

Supported Options

Table 2 shows the supported options of the C9400-LC-48UX.

Accessories Model
Cisco Catalyst 9400 Series Switches C9400-SUP-1XL
Cisco Catalyst 9400 Series Switches C9400-SUP-1XL-Y
Cisco Catalyst 9400 Series Switches C9400-SUP-1

Compare to Similar Items

Table 3 shows the comparison to similar items of the C9400-LC-48UX.

Model Difference
C9400-LC-48T 48x 10/100/1000 data only ports
C9400-LC-48P 48x 10/100/1000 POE+ ports
C9400-LC-48UX 36x 100M/1/2.5/5/10 Gbps Cisco UPOE ports, 12x 10/100/1000 Cisco UPOE ports

Description

C9400-LC-48UX Overview

The C9400-LC-48UX is part of the Cisco Catalyst 9400 series. It’s a 48-port UPOE line card with 24 ports of mGig and 24 ports of RJ-45. The C9400-LC-48UX offers advanced capabilities for modern network demands and helps in securing your organization’s devices and data.

C9400-LC-48UX Specification

C9400-LC-48UX Specifications
Model C9400-LC-48UX
Product Description Cisco Catalyst 9400 Series 48Port UPOE w/ 24p mGig 24p RJ-45
Ethernet Ports 48 x RJ-45 ports (mGig)
Power over Ethernet (PoE) UPOE (Ultra Power over Ethernet)

Reviews

There are no reviews yet.

Be the first to review “C9400-LC-48UX”
